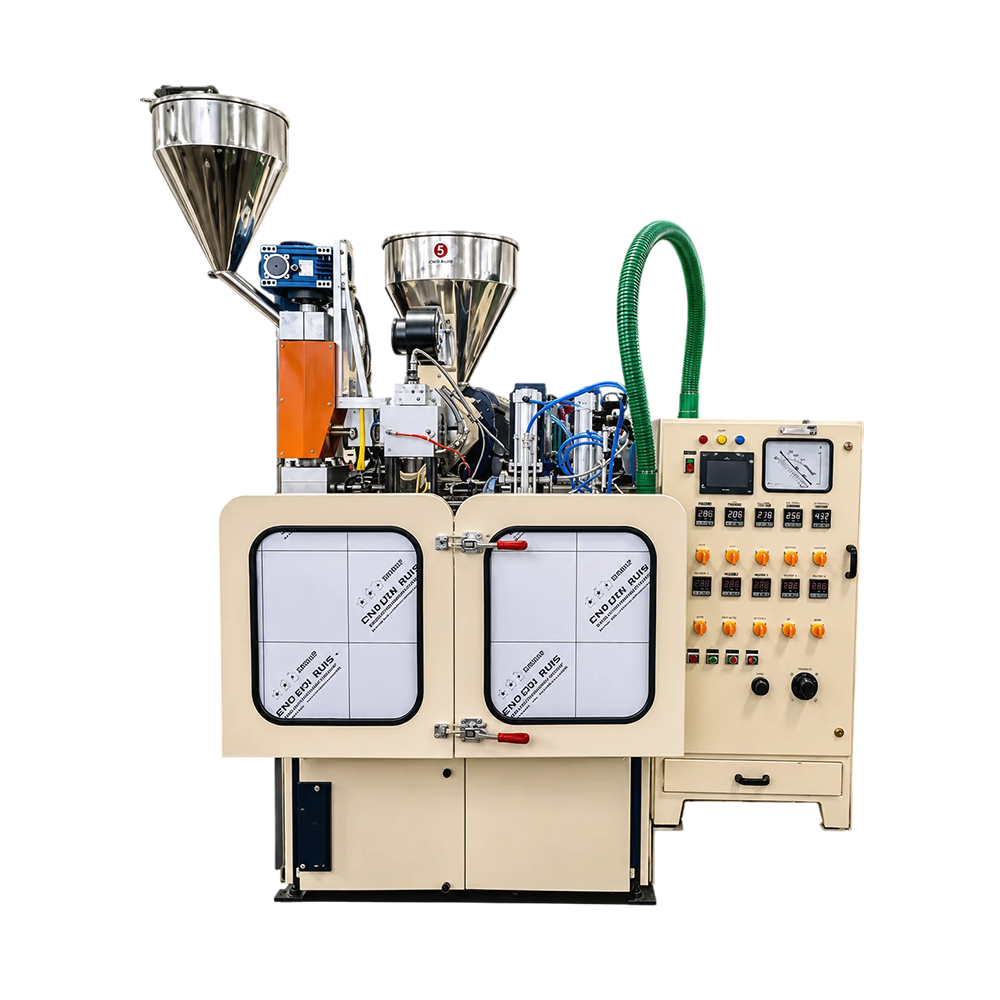

1L Single Stage Single Head with V-Strip Blow Molding Machine

The 1L Single Stage Single Head Blow Molding Machine with V-Strip is designed for efficient production of 1-liter plastic containers. Featuring a single head and a straightforward single-stage process, it ensures rapid heating and precise molding, resulting in high-quality containers with uniform wall thickness. The V-Strip technology enhances the sealing capabilities, providing improved container strength and durability. This machine is user-friendly, energy-efficient, and minimizes material waste, making it suitable for various industries, including food and beverage, cosmetics, and pharmaceuticals. Its robust construction guarantees long-term reliability and consistent performance in high-volume production.

Container Volume Up to 1 L
Process Type Blow
Cavity Count Single Cavity
Automation Grade Automatic
Material HDPE
Mould Thickness 200 mm
Warranty 1 Year
Plastic Processed HDPE, LDPE, PPE etc
Extruder Motor 10 HP
Oil Tank Capacity 200 L
Plasticizing Capacity 35 Kg/hr
Mould Length 340 mm
Mould Width 225 mm
Number of Head Single Head
Number of Stages Single Stage
